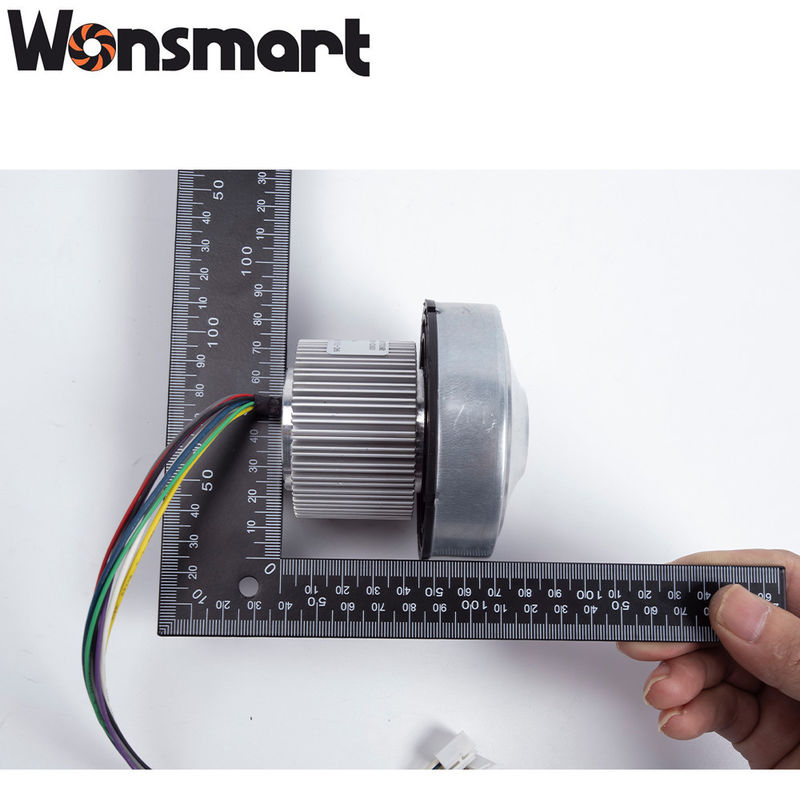

Air Indutrial Blower 12 volt Brushless Powerful with PWM Speed Adjustable 70CFM
Introducing our Air Industrial Blower, designed with a power voltage of 48VDC. When the air outlet is fully open, the air volume can reach up to 70CFM, with a speed of 24000rpm. And when the air outlet is completely blocked, the air pressure can reach up to 10Kpa.
Product parameters:
Brand | Wonsmart |
Blower type | Centrifugal fan |
Bearing | NMB ball bearing |
Applicable Industries | Manufacturing Plant |
Electric Current Type | DC |
Mounting | Ceiling Fan |
Place of Origin | Zhejiang, China |
Warranty | 1 Year |
After-sales Service Provided | Online support |
Controller | external |
Weight | 365g |
Speed@hall sensor frequency | 1Hz=20r/min |
Size | 106mm*90mm |
Life time(MTTF) | >15,000hours (under 25 degree C) |
Drawing:
Blower Performance:
WS10690-48-240-X200 blower can reach maximum 120m3/h airflow at 0 kpa pressure and maximum 10kpa static pressure.It has maximum output air power when this blower run at 10kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 0kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:
Application:
With its impressive 10Kpa air pressure and 70CFM air volume, this powerful blower is perfect for use in the vacuum cleaner industry. You can easily suck in all the dust and dirt with this blower, making it a must-have for any professional cleaning service.
Whether you're looking for a reliable blower for your own vacuum cleaner at home or need a powerful industrial blower for commercial use, our Air Industrial Blower delivers top-of-the-line performance every time. Don't settle for anything less than the best, choose our Air Industrial Blower for all your air blowing needs.
How To Use The Blower Correctly:
This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.
Filter onto the inlet to protect the blower from dust and water.
Keep the environmental temperature as low as possible to make the blower lifetime longer.
