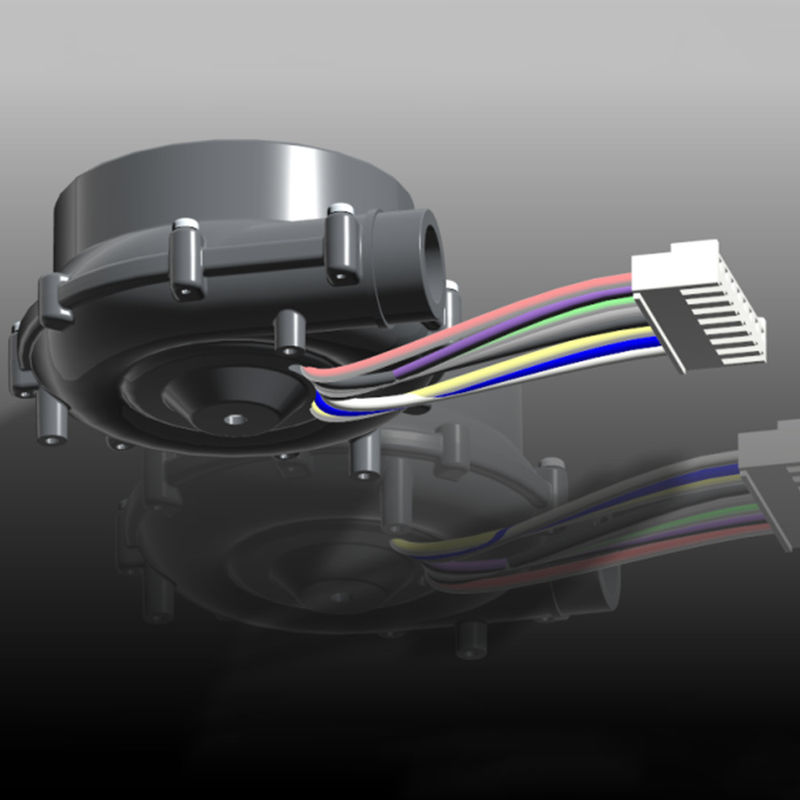

18W-54W 12VDC Compact CPAP Air Blower High Speed ISO9001 Certified
  • 18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified
  • 18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified
  • 18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified
  • 18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified
  • 18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified
  • 18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified
  • 18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified

18W-54W 12VDC Compact CPAP Air Blower High Speed ISO9001 Certified

Place of Origin zhejiang.china
Brand Name Wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS7040-12-X200N
Product Details
Brand:
Wonsmart
Part No:
WS7040-12-X200N
Voltage:
12VDC
Air Pressure:
6Kpa
Product Weight:
78g
Air Flow:
25m3/h
Speed Level:
35,000rpm-43,000rpm
Current:
1.5A-4.5A
Power:
18W-54W
Noise Level:
70[dBA]-73[dBA]
Motor Pole Pairs:
NMB Ball Bearing
Motor Type:
Three Phase Brushless
Highlight:

Compact CPAP Air Blower

,

CPAP Air Blower High Speed

,

ISO9001 cpap machine blower

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified



The mini blower WS7040-12-X200 is a compact and powerful air blower designed for various applications.



With its impressive parameters, it is particularly suitable for use in the field of fuel cells.



18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified 018W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified 1



Blower features



Brand Wonsmart
Blower type Centrifugal fan
Bearing NMB ball bearing
Applicable Industries Manufacturing Plant
Electric Current Type DC
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Warranty 1 Year
After-sales Service Provided Online support
Life time(MTTF) >15,000hours (under 25 degree C)
Weight 80g
Speed@hall sensor frequency 1HZ=60r/min
Size 70*40MM
Controller external





Drawing:



18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified 2





Application



One of the key features of the Mini Blower is its high-speed motor, which has a range of 35,000rpm to 43,000rpm. This motor is capable of generating a significant amount of air flow, with a maximum output of 25m3/h. In addition, the blower is equipped with an air pressure of 6kpa, which makes it an effective tool for a wide range of tasks.



Another important factor to consider when evaluating the Mini Blower is its noise level. At 50-73dba, this blower is relatively quiet, making it a great option for environments where noise levels must be kept to a minimum.



When considering the potential applications for the Mini Blower, one area where it shines is in the field of rework soldering station machines. With its compact size and powerful performance, this blower is an ideal choice for use in this industry.



18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified 3



Company Profile



18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified 4

Certificate



18W-54W 12VDC Compact CPAP Air Blower  High Speed ISO9001 Certified 5



FAQ:



Q: May I use this blower for Medical device?

A: Yes, this is one blower of our company which can be used on Cpap and ventilator.



Q: What is the maxmum air pressure?

A: As it shown in the drawing, the maxmum air pressure is 6 Kpa.



Q:Are you a trading company or a manufacturer?

A: We are a manufacturer.



Q:When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry.lf you are urgent to get the price, please send the messageon trade management or call us directly.



Q:Can you make a motor with custom specifications?

A: Yes, actually that is what we do most of the time.



Q:What is the MOQ ?

A:1~10 pcs for sample order, 10-50 pcs for trial order,100pcs for bulk order.
