24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter
  • 24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter
  • 24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter
  • 24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter
  • 24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter
  • 24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter
  • 24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter

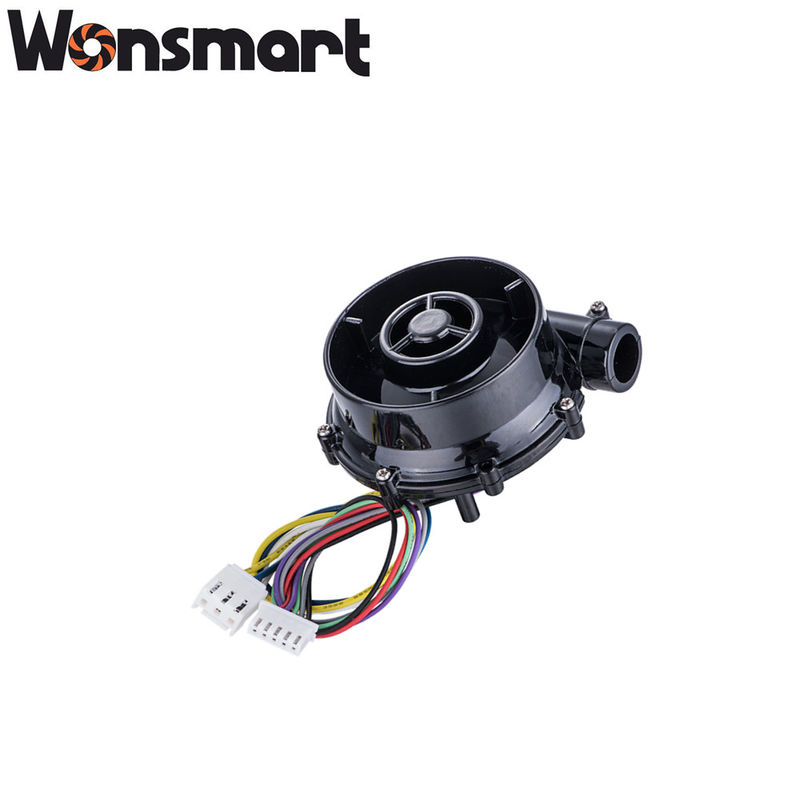

24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter

Place of Origin zhejiang.china
Brand Name Wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS7040-24-V200
Product Details
Brand:
Wonsmart
Part No:
WS7040-24-V200
Voltage:
24VDC
Air Pressure:
6.5Kpa
Product Weight:
78g
Air Flow:
25.5m3/h
Speed Level:
37,000rpm-45,000rpm
Current:
0.8A-2.7A
Power:
19.2W-64.8W
Noise Level:
70[dBA]-73[dBA]
Bearing Type:
NMB Ball Bearing
Motor Type:
Three Phase Brushless
Highlight:

24VDC CPAP Blower

,

24VDC Centrifugal Air Blower Fan

,

CPAP Centrifugal Air Blower Fan

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter



60mm diameter 7kpa pressure 24 Vdc mini centrifugal air blower fan blower for inflatables.



Suitable for air cushion machine/CPAP machine/fuel cell/medical equipment.



24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter 024VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter 1



Blower features:



Brand name Wonsmart
High pressure with dc brushless motor
Blower type Centrifugal fan
Voltage 24vdc
Bearing NMB ball bearing
Type Centrifugal Fan
Applicable Industries Manufacturing Plant
Electric Current Type DC
Blade Material plastic
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Voltage 24VDC
Certification ce, RoHS, ETL
Warranty 1 Year
After-sales Service Provided Online support
Life time(MTTF) >20,000hours (under 25 degree C)
Weight 80 grams
Housing material PC
Unit size D70mm *H37mm
Motor type Three Phase DC Brushless Motor
Outlet diameter OD17mm ID12mm
Controller external
Static pressure 6.8kPa



24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter 2



Drawing:

24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter 3

Blower Performance:



WS7040-24-V200 blower can reach maximum 25.5m3/h airflow at 0 kpa pressure and maximum 6.8kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 5.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve:



24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter 4



DC brushless blower advantage:



(1)WS7040-24-V200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.

(2)This blower needs no maintence

(3)This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.

(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.





Applications:



24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter 5



How to use the blower correctly:



This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower lifetime longer.





FAQ:



Q: May I use this blower for Medical device?

A: Yes, this is one blower of our company which can be used on Cpap and ventilator.



Q: What is the maxmum air pressure?

A: As it shown in the drawing, the maxmum air pressure is 6 Kpa.



Q:Are you a trading company or a manufacturer?

A: We are a manufacturer.



Q:When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry.lf you are urgent to get the price, please send the messageon trade management or call us directly.



Q:Can you make a motor with custom specifications?

A: Yes, actually that is what we do most of the time.



Q:What is the MOQ ?

A:1~10 pcs for sample order, 10-50 pcs for trial order,100pcs for bulk order.
