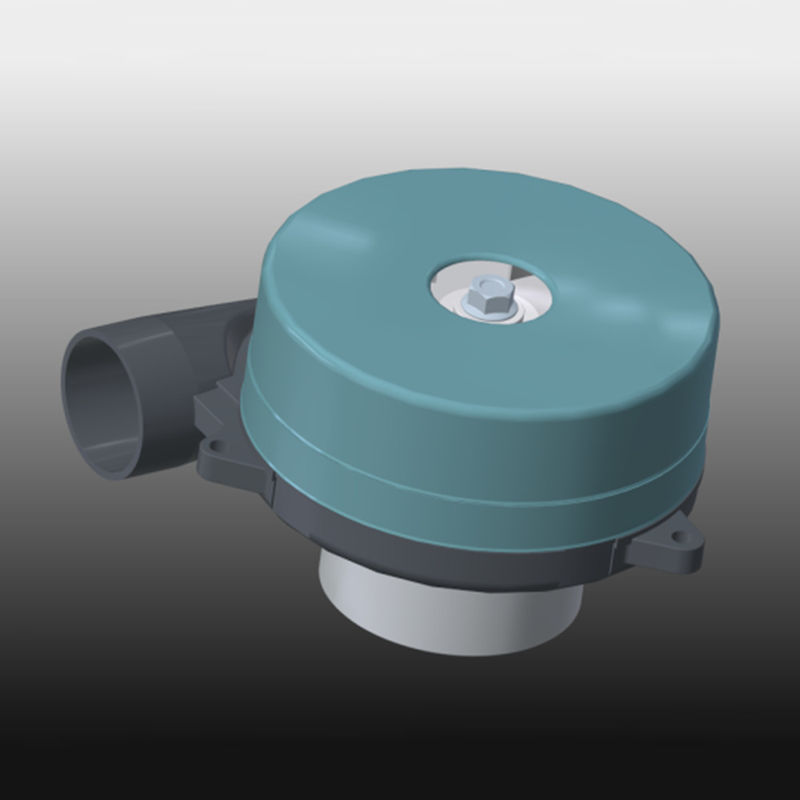

DC48V Brushless Small High Pressure DC Blower 12Kpa For Manufacturing Plant

Place of Origin zhejiang.china
Brand Name Wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS140120S-48-130-X300
Product Details
Brand:
Wonsmart
Part No:
WS140120S-48-130-X300
Voltage:
48VDC
Air Pressure:
12Kpa
Product Weight:
1.5kg
Air Flow:
130m3/h
Speed Level:
13,000rpm-15,500rpm
Current:
3.5A-6.2A
Power:
168W-297.6W
Noise Level:
83[dBA]-85[dBA]
Motor Pole Pairs:
2
Motor Type:
Three Phase Brushless
Highlight:

DC48V High Pressure DC Blower

,

High Pressure DC Blower 12Kpa

,

12Kpa small high pressure fan

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

48V High Pressure Brushless Fuel Cell Electric Ring Blower



110mm small sized 12kPa 15CFM air flow 48V high pressure brushless Fuel Cell Electric Ring Blower for 10kw fuel cell.

DC brushless industrial fan blower is suitable for air cushion machine/fuel cell/medical equipment and inflatables



DC48V Brushless Small High Pressure DC Blower 12Kpa For Manufacturing Plant 0DC48V Brushless Small High Pressure DC Blower 12Kpa For Manufacturing Plant 1





Blower features:



Brand name Wonsmart
High pressure with dc brushless motor
Blower type Centrifugal fan
Voltage 48 vdc
Bearing NMB ball bearing
Applicable Industries Manufacturing Plant
Electric Current Type DC
Blade Material plastic
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Certification ce, RoHS
Warranty 1 Year
After-sales Service Provided Online support
Life time(MTTF) >20,000hours (under 25 degree C)
Weight 1.5 Kgs
Housing material PC
Size 140*120MM
Motor type Three Phase DC Brushless Motor
Controller external
Static pressure 12kPa





Drawing:





DC48V Brushless Small High Pressure DC Blower 12Kpa For Manufacturing Plant 2



Blower Performance:



WS140120S-48-130-X300 blower can reach maximum 120m3/h airflow at 0 kpa pressure and maximum 12kpa static pressure.It has maximum output air power when this blower run at 7kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 7kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:



DC48V Brushless Small High Pressure DC Blower 12Kpa For Manufacturing Plant 3





DC brushless blower advantage:



(1)WS140120S-48-130-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 10,000hours at 20degree C environmental temperature.

(2)This blower needs no maintence;

(3)This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration,brake etc.it can be controlled by intelligent machine and equipment easily.

(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.





Applications:



This blower can be widely used onto air purify,air bed,cooling,vacuum machine.





How to use the blower correctly:



This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower life time longer.





FAQ:



Q :Do you also sell controller board for this blower fan?
A: Yes, we can supply adapted controller board for this blower fan.

Q: How to change impeller speed if we use your controller board?
A: You can use 0~5v or PWM to change speed. Our standard controller board is also with a potentiometer to change speed conveniently.



Q: What is the MTTF of this centrifugal air blower?
A: MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
