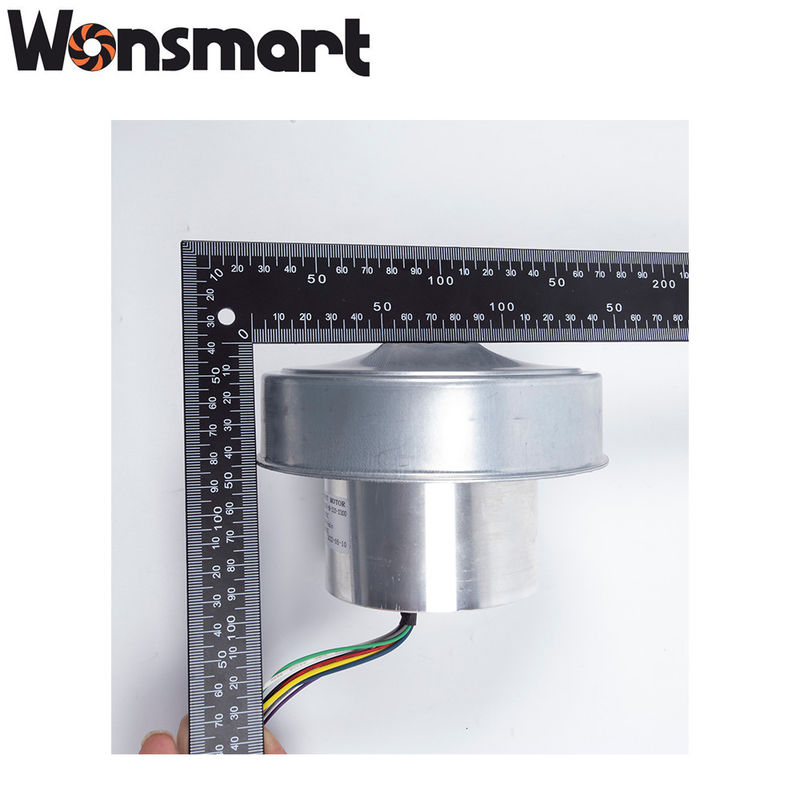

400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection
  • 400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection
  • 400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection
  • 400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection
  • 400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection
  • 400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection
  • 400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection

400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection

Place of Origin zhejiang.china
Brand Name Wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS130120S2-24-220-S200
Product Details
Brand:
Wonsmart
Part No:
WS130120S2-24-220-S200
Voltage:
24VDC
Air Pressure:
12Kpa
Product Weight:
886g
Air Flow:
110m3/h
Speed Level:
21,000rpm-26,000rpm
Current:
10A-18A
Power:
240W-432W
Noise Level:
91[dBA]-97[dBA]
Motor Pole Pairs:
2
Motor Type:
Three Phase Brushless
Highlight:

400W Mini Centrifugal Blower

,

Medical DC Centrifugal Blower

,

Spray Disinfection Mini Centrifugal Blower

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

400W 24VDC high air flow medical blower for Spray disinfection



With a voltage of 24VDC and a maximum output of 110m3/h, this blower can create a powerful air stream that can reach every corner of the designated area. The output speed reaches up to 21000rpm, and the power consumption is only 430W, making it energy efficient as well.

400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection 0400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection 1



Product parameters



Brand Wonsmart
Blower type Centrifugal fan
Bearing NMB ball bearing
Applicable Industries Manufacturing Plant
Electric Current Type DC
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Warranty 1 Year
After-sales Service Provided Online support
Controller external
Weight 886g
Speed@hall sensor frequency 1Hz=30r/min
Size 130mm*120mm
Life time(MTTF) >10,000hours (under 25 degree C)





Drawing:

400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection 2





Blower Performance



WS130120S2-24-220-S200 blower can reach maximum 110m3/h airflow at 0 kpa pressure and maximum 12kpa static pressure.It has maximum output air power when this blower run at 12kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 0kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:



400W Mini Centrifugal Blower Medical DC Centrifugal Blower 24VDC For Spray Disinfection 3



Application



With the increasing emphasis on health and hygiene, it has become vital to have proper disinfection measures in place. The use of medical disinfection sprayers has become a common practice to ensure that hospitals, clinics, and other medical facilities remain sterile and free from harmful pathogens. However, the efficiency of these sprayers also depends on the output of the medical blower used to drive the spray. And this is where Medical Blower comes in.



One of the key features of Medical Blower is its high output capacity, which makes it an excellent choice for the medical disinfection sprayer. With output of up to 110m3/h, the blower can ensure that disinfection spray is evenly distributed over a large area, thereby ensuring thorough coverage of surfaces.



In addition, the Medical Blower’s design is another defining feature that makes it stand out from other products in the market. Its outlet is located at the bottom of the device, ensuring that the spray can be directed downward, making it easy to disinfect floors and other low-lying surfaces.





How To Use The Blower Correctly

This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.



Filter onto the inlet to protect the blower from dust and water.



Keep the environmental temperature as low as possible to make the blower lifetime longer.
