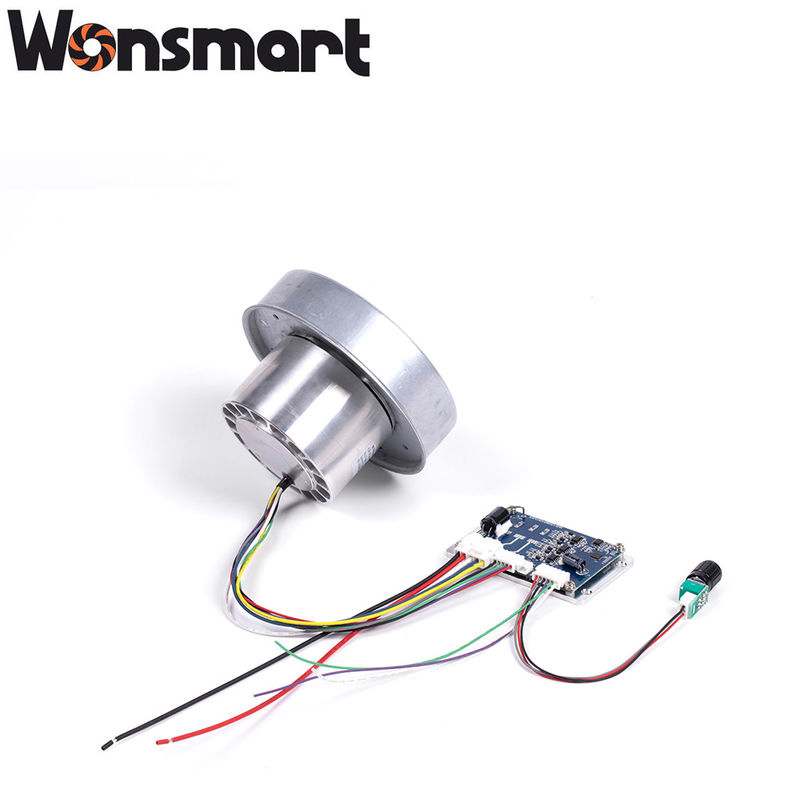

26000rpm High Speed Compact Centrifugal Fan 48VDC Small High Pressure Blower

Place of Origin zhejiang.china
Brand Name Wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS130120S2-48-220-X300
Product Details
Brand:
Wonsmart
Part No:
WS130120S2-48-220-X300
Voltage:
48VDC
Air Pressure:
13Kpa
Product Weight:
886g
Air Flow:
140m3/h
Speed Level:
21,000rpm-26,000rpm
Current:
4.8A-7A
Power:
230.4W-336w
Noise Level:
91[dBA]-97[dBA]
Motor Pole Pairs:
2
Motor Type:
Three Phase Brushless
Highlight:

26000rpm Compact Centrifugal Fan

,

48VDC Small High Pressure Blower

,

Compact Centrifugal Fan 48VDC

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

26000rpm High speed&high airflow 140m3/h 48VDC high pressure fan air pump inflatable blower



13kPa pressure 120m3/h airflow 48Vdc 26000rpm High speed&high airflow 140m3/h 48VDC high pressure fan air pump inflatable blower Suitable for Industrial Vacuum Cleaners,Industrial floor scrubbers

26000rpm High Speed Compact Centrifugal Fan 48VDC Small High Pressure Blower 026000rpm High Speed Compact Centrifugal Fan 48VDC Small High Pressure Blower 1





Blower features:



Brand name Wonsmart
High pressure with dc brushless motor
Blower type Centrifugal fan
Voltage 48vdc
Bearing NMB ball bearing
Applicable Industries Manufacturing Plant
Electric Current Type DC
Blade Material aluminium
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Certification ce, RoHS
Warranty 1 Year
After-sales Service Provided Online support
Life time(MTTF) >20,000hours (under 25 degree C)
Weight 858 grams
Housing material PC
Size 130mm*120mm
Motor type Three Phase DC Brushless Motor
Controller external
Static pressure 13kPa



Drawing:

26000rpm High Speed Compact Centrifugal Fan 48VDC Small High Pressure Blower 2

Blower Performance:



WS130120S-48-220-X300 blower can reach maximum 140m3/h airflow at 0 Kpa pressure and maximum 13kpa static pressure.It has maximum output air power when this blower run at 8.5kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 8.5kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:

26000rpm High Speed Compact Centrifugal Fan 48VDC Small High Pressure Blower 3



DC brushless blower advantage:



(1)WS130120S-48-220-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 15,000hours at 20degree C environmental temperature.

(2)This blower needs no maintence

(3)This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.

(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.





Applications:



This blower can be widely used onto vacuum machine,dust collector,floor treatment machine.





How to use the blower correctly:



This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower life time longer.





FAQ:



Q: Can we connect this centrifugal air blower directly onto power source?

A: This blower fan is with BLDC motor inside and it needs a controller board to run.


Q: Do you also sell controller board for this blower fan?
A: Yes, we can supply adapted controller board for this blower fan.

Q: How to change impeller speed if we use your controller board?
A: You can use 0~5v or PWM to change speed. Our standard controller board is also with a potentiometer to change speed conveniently.
