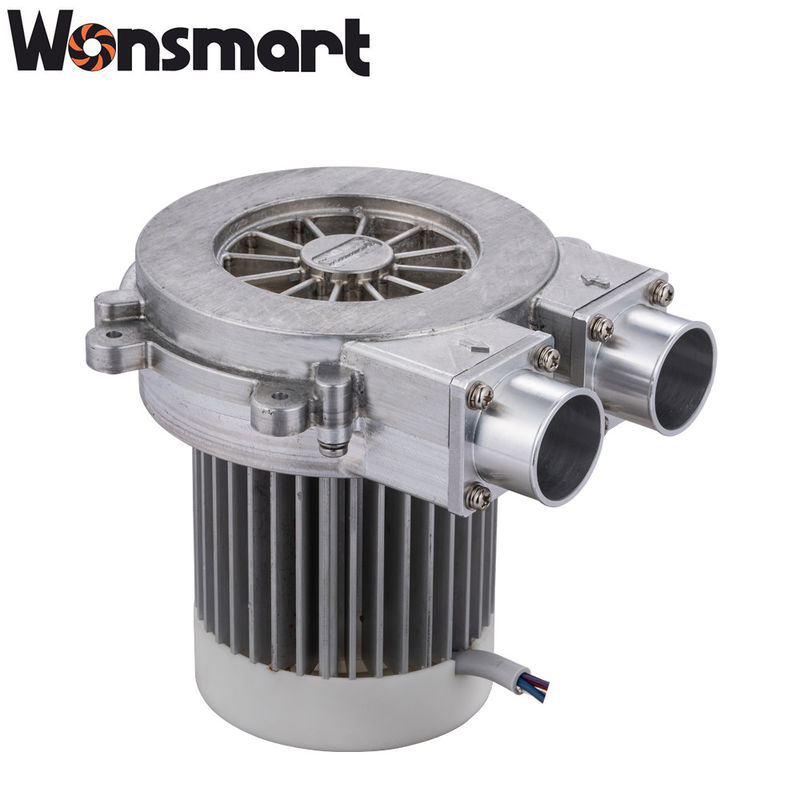

Brushless DC blowers have revolutionized the ventilation industry with their energy efficiency and low noise generation. The WS145120 blower model is a powerful, high-performance, and reliable option that is ideal for use in industrial environments. This fan model has become a cornerstone of many industrial processes due to its superior performance and cost-effectiveness.
Blower features
Brand name | Wonsmart |
High pressure with dc brushless motor | |
Blower type | Centrifugal blower |
Voltage | 48vdc |
Bearing | NMB ball bearing |
Applicable Industries | Manufacturing Plant |
Electric Current Type | DC |
Blade Material | plastic |
Mounting | Ceiling blower |
Place of Origin | Zhejiang, China |
Noise Level | 88dba |
Certification | CE, RoHS,REACH,ETL |
Warranty | 1 Year |
After-sales Service Provided | Online support |
Life time(MTTF) | >20,000hours (under 25 degree C) |
Weight | 1.1Kgs |
Housing material | PC |
Unit size | D140mm*H110mm |
Motor type | Three Phase DC Brushless Motor |
Controller | external |
Static pressure | 8.5kPa |
Drawing:
Blower Performance
WS145120-24-150-X300 blower can reach maximum 67m³/h airflow at 0 kpa pressure and maximum 28kpa static pressure.It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 28kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:
DC brushless blower advantage:
(1)WS145120-24-150-X300blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 30,000 hours at 20 degree C environmental temperature.
(2)This mini blower needs no maintence;
(3)This mini blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.
(4)Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Applications:
This blower can be widely used onto vacuum machine,fuel cell.
How to use the blower correctly:
This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.
Filter onto the inlet to protect the blower from dust and water.
Keep the environmental temperature as low as possible to make the blower life time longer.
FAQ:
Q: Can we connect this centrifugal air blower directly onto power source?
A: This blower blower is with BLDC motor inside and it needs a controller board to run.
Q: What kind of power source shall we use to drive this blower blower?
A: Generally, our customers use 24vdc switching power supply or Li-on battery.
Q: Do you also sell controller board for this blower blower?
A: Yes, we can supply adapted controller board for this blower blower.
