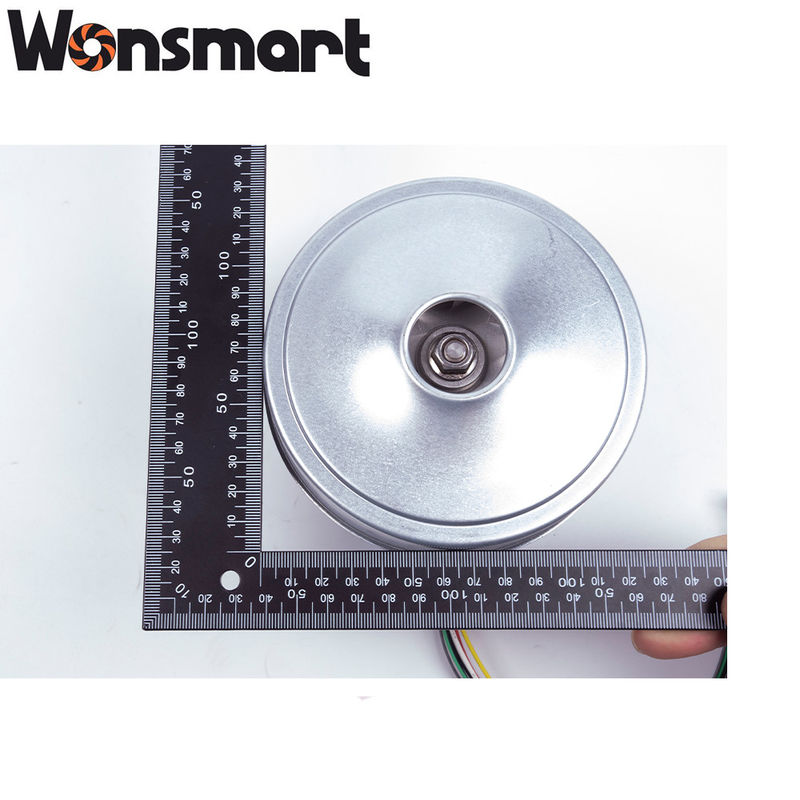

400W 24VDC high air flow medical blower for Spray disinfection
With a voltage of 24VDC and a maximum output of 110m3/h, this blower can create a powerful air stream that can reach every corner of the designated area. The output speed reaches up to 21000rpm, and the power consumption is only 430W, making it energy efficient as well.
Product parameters
Brand | Wonsmart |
Blower type | Centrifugal fan |
Bearing | NMB ball bearing |
Applicable Industries | Manufacturing Plant |
Electric Current Type | DC |
Mounting | Ceiling Fan |
Place of Origin | Zhejiang, China |
Warranty | 1 Year |
After-sales Service Provided | Online support |
Controller | external |
Weight | 886g |
Speed@hall sensor frequency | 1Hz=30r/min |
Size | 130mm*120mm |
Life time(MTTF) | >10,000hours (under 25 degree C) |
Drawing:
Blower Performance
WS130120S2-24-220-S200 blower can reach maximum 110m3/h airflow at 0 kpa pressure and maximum 12kpa static pressure.It has maximum output air power when this blower run at 12kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 0kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:
Application
With the increasing emphasis on health and hygiene, it has become vital to have proper disinfection measures in place. The use of medical disinfection sprayers has become a common practice to ensure that hospitals, clinics, and other medical facilities remain sterile and free from harmful pathogens. However, the efficiency of these sprayers also depends on the output of the medical blower used to drive the spray. And this is where Medical Blower comes in.
One of the key features of Medical Blower is its high output capacity, which makes it an excellent choice for the medical disinfection sprayer. With output of up to 110m3/h, the blower can ensure that disinfection spray is evenly distributed over a large area, thereby ensuring thorough coverage of surfaces.
In addition, the Medical Blower’s design is another defining feature that makes it stand out from other products in the market. Its outlet is located at the bottom of the device, ensuring that the spray can be directed downward, making it easy to disinfect floors and other low-lying surfaces.
How To Use The Blower Correctly
This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.
Filter onto the inlet to protect the blower from dust and water.
Keep the environmental temperature as low as possible to make the blower lifetime longer.
