12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM
  • 12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM
  • 12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM
  • 12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM
  • 12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM
  • 12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM
  • 12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM

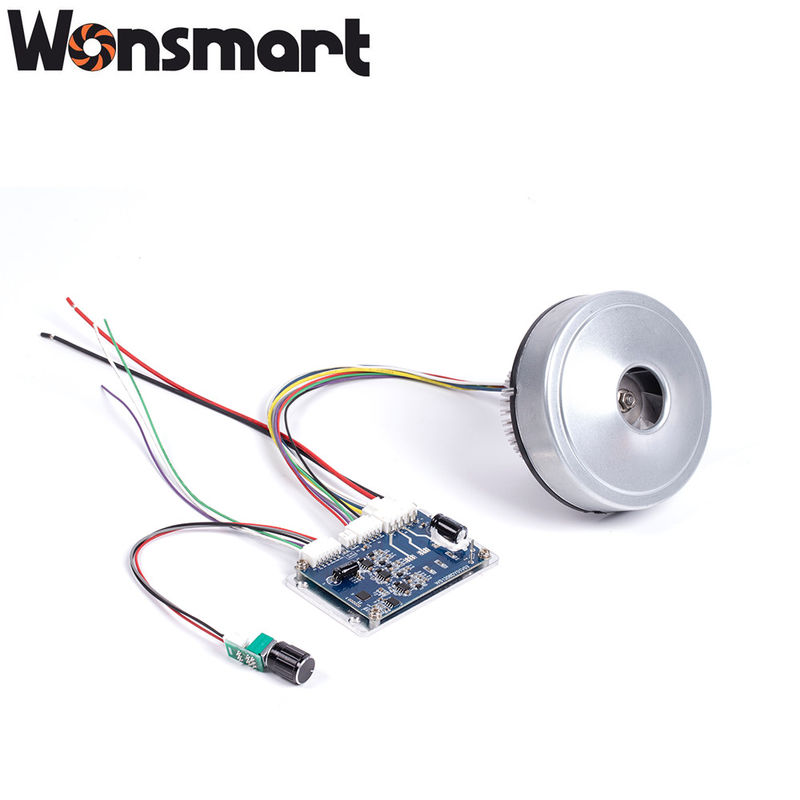

12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM

Place of Origin zhejiang.china
Brand Name Wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS10690-48-240-X200
Product Details
Brand:
Wonsmart
Part No:
WS10690-48-240-X200
Voltage:
48VDC
Air Pressure:
2.75Kpa
Product Weight:
365g
Air Flow:
120m3/h
Speed Level:
24,000rpm-29,000rpm
Current:
2.75A-6A
Power:
132W-288W
Noise Level:
86[dBA]-90[dBA]
Motor Pole Pairs:
2
Motor Type:
Three Phase Brushless
Highlight:

Industrial Air Blower 70CFM

,

70CFM industrial blower fan

,

12Volt Industrial Air Blower

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

Air Indutrial Blower 12 volt Brushless Powerful with PWM Speed Adjustable 70CFM



Introducing our Air Industrial Blower, designed with a power voltage of 48VDC. When the air outlet is fully open, the air volume can reach up to 70CFM, with a speed of 24000rpm. And when the air outlet is completely blocked, the air pressure can reach up to 10Kpa.

12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM 012Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM 1





Product parameters:



Brand Wonsmart
Blower type Centrifugal fan
Bearing NMB ball bearing
Applicable Industries Manufacturing Plant
Electric Current Type DC
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Warranty 1 Year
After-sales Service Provided Online support
Controller external
Weight 365g
Speed@hall sensor frequency 1Hz=20r/min
Size 106mm*90mm
Life time(MTTF) >15,000hours (under 25 degree C)





Drawing:

12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM 2





Blower Performance:



WS10690-48-240-X200 blower can reach maximum 120m3/h airflow at 0 kpa pressure and maximum 10kpa static pressure.It has maximum output air power when this blower run at 10kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 0kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:



12Volt Brushless Industrial Air Blower With PWM Speed Adjustable 70CFM 3



Application:



With its impressive 10Kpa air pressure and 70CFM air volume, this powerful blower is perfect for use in the vacuum cleaner industry. You can easily suck in all the dust and dirt with this blower, making it a must-have for any professional cleaning service.



Whether you're looking for a reliable blower for your own vacuum cleaner at home or need a powerful industrial blower for commercial use, our Air Industrial Blower delivers top-of-the-line performance every time. Don't settle for anything less than the best, choose our Air Industrial Blower for all your air blowing needs.





How To Use The Blower Correctly:



This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.



Filter onto the inlet to protect the blower from dust and water.



Keep the environmental temperature as low as possible to make the blower lifetime longer.
