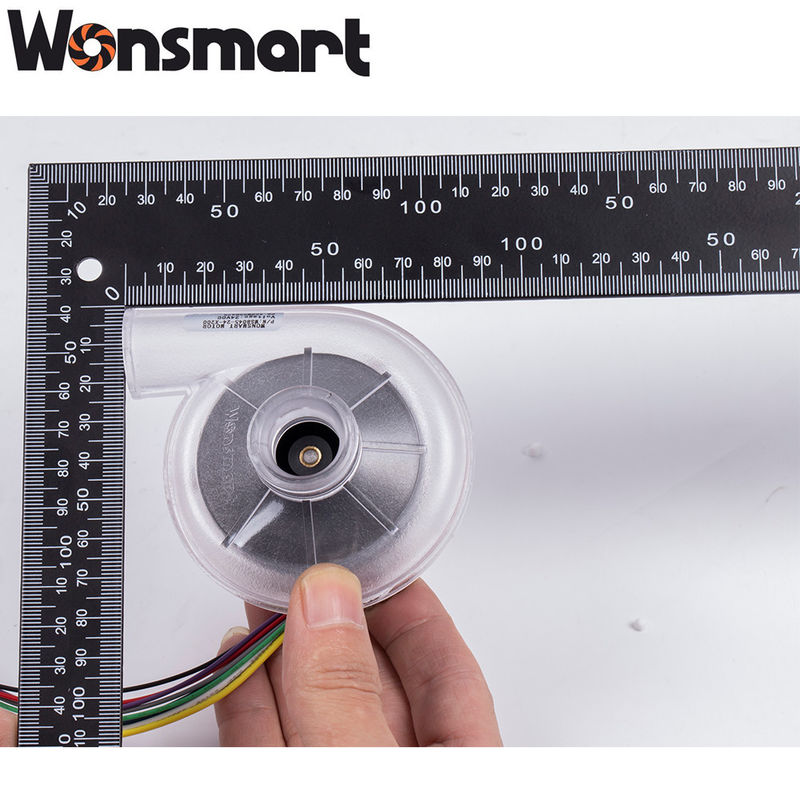

50000rpm High Efficiency Medical Air Blower 47m3/H With Brushless Motors

Place of Origin zhejiang.china
Brand Name wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS8045-24-X200
Product Details
Brand:
Wonsmart
Part No:
WS8045-24-X200
Voltage:
24VDC
Air Pressure:
15Kpa
Product Weight:
500g
Air Flow:
48m3/h
Speed Level:
39,500rpm-50,000rpm
Current:
3.5A-7.7A
Power:
84W-184.8W
Noise Level:
81[dBA]
Motor Pole Pairs:
1
Motor Type:
Three Phase Brushless
Highlight:

Medical Air Blower 47m3/h

,

50000rpm Medical Air Blower

,

50000rpm Brushless Air Blower

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

50,000rpm high efficiency brushless 47m3/h airflow DC Blower for medical Appliance



Wonsmart 15.7kpa pressure 24 Vdc small electric air turbo blower for medical devices. Suitable for Bipap/CPAP/ICU ventilator machine/ medical equipment.

50000rpm High Efficiency Medical Air Blower 47m3/H With Brushless Motors 050000rpm High Efficiency Medical Air Blower 47m3/H With Brushless Motors 1

Blower features:



Brand name Wonsmart
50,000rpm high efficiency brushless 47m3/h airflow DC Blower for medical Appliance
Blower type Centrifugal fan
Voltage 24vdc
Bearing NMB ball bearing
Type Centrifugal Fan
Applicable Industries Manufacturing Plant
Electric Current Type DC
Blade Material plastic
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Voltage 24VDC
Certification ce, RoHS, ETL
Warranty 1 Year
After-sales Service Provided Online support
Life time(MTTF) >20,000hours (under 25 degree C)
Weight 271 grams
Housing material PC
Unit size D80mm*H45mm
Motor type Three Phase DC Brushless Motor
Controller external
Static pressure 15.7kPa



Drawing:

50000rpm High Efficiency Medical Air Blower 47m3/H With Brushless Motors 2



Blower Performance:



WS8045-24-X200 blower can reach maximum 47m3/h airflow at 0 kpa pressure and maximum 15.7kpa static pressure. Other load point performance refer to below P-Q curve:

50000rpm High Efficiency Medical Air Blower 47m3/H With Brushless Motors 3



DC brushless blower advantage:



(1) WS8045-24-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.

(2) This blower needs no maintence

(3) This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.

(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.





Applications:



This small electric air turbo blower can be widely used onto CPAP/Ventilator machine, and other medical devices.





How to use the blower correctly:



This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower lifetime longer.





FAQ:



Q:Are you factory or trading company?
A: We are factory with 4,000 square meters and we have been focus on high pressure BLDC blowers for more than 10 years

Q:Can you design a new blower fan if we give you target performance?
A: Yes, we offer ODM service for both blower fan and controller board

Q:Can we connect this centrifugal air blower directly onto power source?

A: This blower fan is with BLDC motor inside and it needs a controller board to run.

Q:What kind of power source shall we use to drive this blower fan?
A: Generally, our customers use 24vdc switching power supply or Li-on battery.

Q:Do you also sell controller board for this blower fan?
A: Yes, we can supply adapted controller board for this blower fan.

How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.
