Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines
  • Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines
  • Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines
  • Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines
  • Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines
  • Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines
  • Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines

Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines

Place of Origin China
Brand Name Wonsmart
Certification Reach,Rohs,ISO9001,CE
Model Number WS7040-12-X200N/WS7040-24-V200
Product Details
Voltage::
12VDC/24VDC
Speed:
45000rpm
Airflow:
25m3/h
Noise:
70dba
Air Pressure:
6.5kpa
Motor Type:
Three Phase Brushless
Bearing Type:
NMB Ball Bearing
Dielectric Srtength:
500VDC For 1min
Highlight:

CPAP Machines brushless blower fan

,

Compact 12v brushless blower

,

6.5kpa 12v brushless blower

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$27.5
Packaging Details
Carton packing
Delivery Time
7-10 work day
Payment Terms
T/T
Supply Ability
8000pcs/year
Product Description
WS7040/BRUSHLESS DC BLOWER



1. Compact size and tight structure make it easy to install and store, while remaining affordable.


2. The blower measures 70mm in diameter and 40mm in height, with a corresponding air outlet diameter of 12mm, providing efficient and reliable airflow.


3. Available in two versions, 12V and 24V, making it flexible and adaptable to various applications.


4. Low noise level, making it a suitable choice for medical equipment like CPAP machines.


5. High rotational speed, reaching up to 45000rpm, allows for responsive and precise control of airflow.



Main Parameters



Model Voltage Max.air flow Max.air pressure Current range Power range Speed range Noise  Outlet Inlet
V m3/h Kpa A W rpm dba mm mm

WS7040-12-X200N

12 25 6 1.5-4.5 18-54 45000-49000 50-73 φ12 φ20.8
WS7040-24-V200 24 25.5 6.5 0.8-2.7 19.2-64.2 35000-43000 50-73 φ12 φ20.8

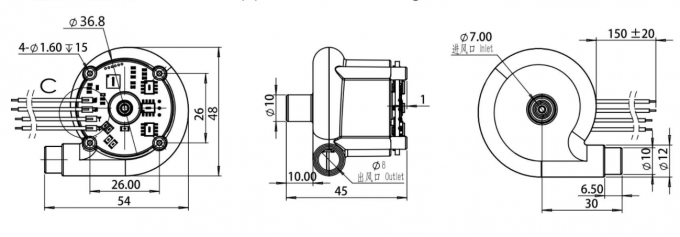

Drawing



Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines 0



Tips:Overall size(L*W*H):71mm*70mm*37.5mm

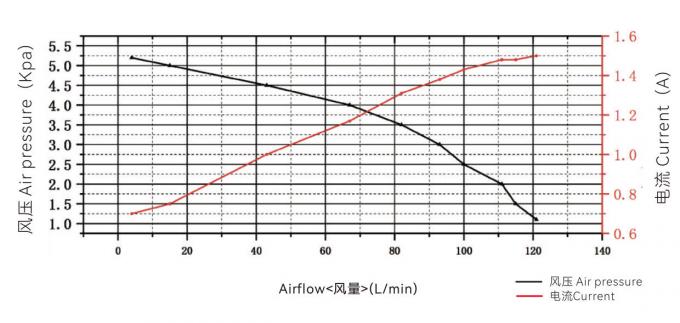

Performance Curve

Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines 1

WS7040-12-X200N
@Free-blowering @At working Point @At static pressure
Speed Current Airflow Air pressure Speed Current Airflow Speed Current Air pressure
35000rpm 4.5A 36m3/h 5Kpa 42000rpm 2.8A 8.5m3/h 43000rpm 1.5A 60kpa







Compact Affordable 12v Brushless Blower DC 6.5kpa For CPAP Machines 2

WS7040-24-V200
@Free-blowering @At working Point @At static pressure
Speed Current Airflow Air pressure Speed Current Airflow Speed Current Air pressure
37000rpm 2.7A 25.5m3/h 4Kpa 40000rpm 1.9A 13m3/h 45000rpm 0.8A 6.5kpa










Bullet Points



Our Brushless DC blower is an excellent choice for those in need of a compact yet high-quality solution for their CPAP machine or other medical devices. With a diameter of 70mm*40mm and air outlet diameter of 12mm, our blower is perfect for tight spaces.


Our blower comes in two versions: 12V and 24V, so no matter what your power requirements are, we've got you covered. Additionally, the operational sound level of our brushless DC blower is incredibly low, ensuring that you won't be disturbed while using your device.


At a maximum speed of 45,000 RPM, our brushless DC blower is among the fastest and most powerful in its class. So, whether you're trying to get a good night's sleep with your CPAP or need a reliable blower for another medical device, you can count on our brushless DC blower to get the job done.
Despite its impressive performance, our blower is incredibly affordable, meaning that you won't break the bank when purchasing this high-quality solution. So, whether you are a medical professional or an individual in need of a reliable blower for personal use, look no further than our Brushless DC blower.





Try it out today
