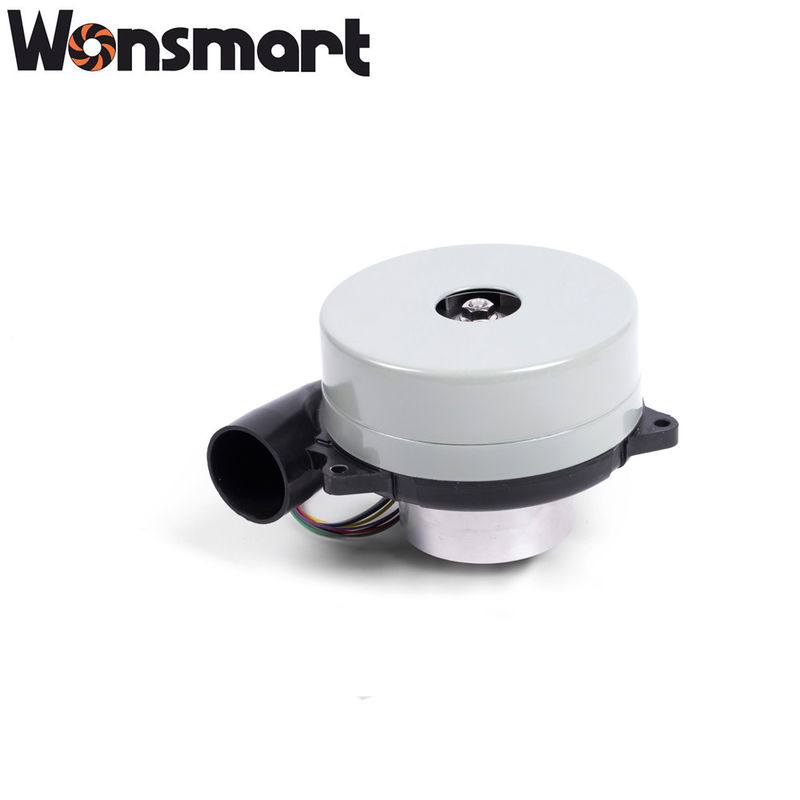

Wonsmart 24VDC BLDC Blower Fan 3 Phase Air Blower 13000rpm-16500rpm Speed

Place of Origin zhejiang.china
Brand Name Wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS140120S-24-130-S200
Product Details
Brand:
Wonsmart
Part No:
WS140120S-24-130-S200
Voltage:
24VDC
Air Pressure:
14Kpa
Product Weight:
1.5kg
Air Flow:
130m3/h
Speed Level:
13,000rpm-16,500rpm
Current:
9A-14.5A
Power:
216W-348W
Noise Level:
83[dBA]-85[dBA]
Motor Pole Pairs:
2
Motor Type:
Three Phase Brushless
Highlight:

Wonsmart BLDC blower fan

,

24VDC BLDC Blower Fan

,

Wonsmart 3 Phase Air Blower

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

14Kpa airpressure BLDC blower for vacuum cleaner machine.



The 24VDC high air pressure blower is a powerful and efficient device that measures 140mm by 120mm in size. This blower is specifically designed to deliver high air pressure, making it a suitable choice for various applications in the vacuum cleaner industry.

Wonsmart 24VDC BLDC Blower Fan 3 Phase Air Blower 13000rpm-16500rpm Speed 0Wonsmart 24VDC BLDC Blower Fan 3 Phase Air Blower 13000rpm-16500rpm Speed 1





Blower features



Brand Wonsmart
Blower type Centrifugal fan
Bearing NMB ball bearing
Applicable Industries Manufacturing Plant
Electric Current Type DC
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Warranty 1 Year
After-sales Service Provided Online support
Life time(MTTF) >15,000hours (under 25 degree C)
Weight 1.5 Kgs
Speed@hall sensor frequency 1HZ=60r/min
Size 140*120MM
Controller external





Drawing:



Wonsmart 24VDC BLDC Blower Fan 3 Phase Air Blower 13000rpm-16500rpm Speed 2







Blower Performance



WS140120S-24-130-S200 blower can reach maximum 130m3/h airflow at 0 kpa pressure and maximum 14kpa static pressure.It has maximum output air power when this blower run at 14kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 0kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:



Wonsmart 24VDC BLDC Blower Fan 3 Phase Air Blower 13000rpm-16500rpm Speed 3





Application



This mini blower features an inlet and outlet port that allows for efficient air flow and pressure. Its speed range of 35000rpm to 43000rpm makes it a powerful tool that can handle demanding tasks. The current level of 1.5A to 4.5A ensures a stable and reliable performance, while the noise level of 50-73dba keeps the workplace quiet and comfortable.



When combined with a rework soldering station machine, this mini blower can help to improve the efficiency of the fuel cell manufacturing process. Its air flow rate of 25m3/H and air pressure of 6kpa make it the perfect tool for removing excess solder and debris, ensuring the optimal performance of the fuel cell.



Overall, the mini blower WS7040-12-X200 is a versatile and powerful tool that is well-suited for a wide range of applications. Whether you're working in the field of fuel cells or any other area that requires efficient air flow and pressure, this mini blower is sure to get the job done. So why wait? Get your mini blower today and experience its power and versatility for yourself!





FAQ



Q: May I use this blower for Medical device?

A: Yes, this is one blower of our company which can be used on Cpap and ventilator.



Q: What is the maxmum air pressure?

A: As it shown in the drawing, the maxmum air pressure is 6 Kpa.



Q:Are you a trading company or a manufacturer?

A: We are a manufacturer.



Q:When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry.lf you are urgent to get the price, please send the messageon trade management or call us directly.



Q:Can you make a motor with custom specifications?

A: Yes, actually that is what we do most of the time.
