Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed
  • Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed
  • Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed
  • Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed
  • Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed
  • Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed
  • Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed

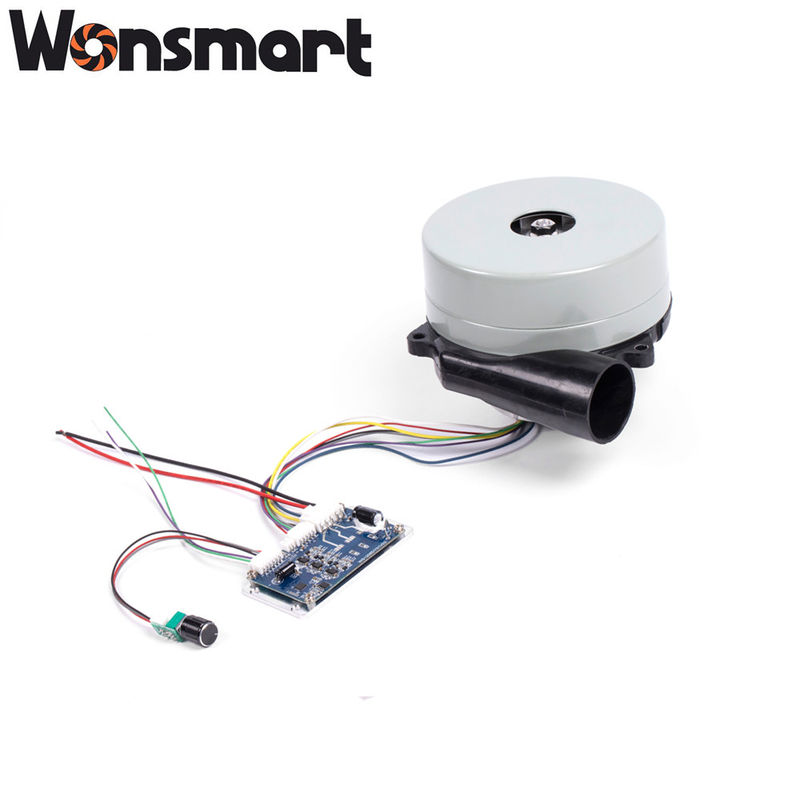

Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed

Place of Origin zhejiang.china
Brand Name Wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS140120S-24-130-S200
Product Details
Brand:
Wonsmart
Part No:
WS140120S-24-130-S200
Voltage:
24VDC
Air Pressure:
14Kpa
Product Weight:
1.5kg
Air Flow:
130m3/h
Speed Level:
13,000rpm-16,500rpm
Current:
9A-14.5A
Power:
216W-348W
Noise Level:
83[dBA]-85[dBA]
Motor Pole Pairs:
2
Motor Type:
Three Phase Brushless
Highlight:

14Kpa BLDC Air Blower

,

Powerful BLDC Air Blower

,

14Kpa bldc blower fan

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

14Kpa airpressure BLDC blower for vacuum cleaner machine.



The 24VDC high air pressure blower is a powerful and efficient device that measures 140mm by 120mm in size. This blower is specifically designed to deliver high air pressure, making it a suitable choice for various applications in the vacuum cleaner industry.

Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed 0Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed 1





Blower features



Brand Wonsmart
Blower type Centrifugal fan
Bearing NMB ball bearing
Applicable Industries Manufacturing Plant
Electric Current Type DC
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Warranty 1 Year
After-sales Service Provided Online support
Life time(MTTF) >15,000hours (under 25 degree C)
Weight 1.5 Kgs
Speed@hall sensor frequency 1HZ=60r/min
Size 140*120MM
Controller external





Drawing:



Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed 2







Blower Performance



The WS140120S-24-130-S200 fan can achieve a maximum air volume of 130m3/h under 0kpa pressure and 14kpa static pressure. If we set 100% PWM, the blower has the maximum output air power when operating at a resistance of 14kPa. If we set 100% PWM, the blower has the highest efficiency when operating at a resistance of 0kPa. The performance of other load points can refer to the following P-Q curve:



Powerful 14Kpa BLDC Air Blower For Vacuum Cleaner Machine High Speed 3





Application



This mini blower has an inlet and outlet, which can achieve efficient airflow and pressure. Its speed range is 35000rpm to 43000rpm, making it a powerful tool that can handle demanding tasks. A current level of 1.5A to 4.5A ensures stable and reliable performance, while a noise level of 50-73dBa keeps the workplace quiet and comfortable.


When combined with rework welding station machines, this small blower can help improve the efficiency of fuel cell manufacturing processes. Its air flow rate is 25m3/H and air pressure is 6kpa, making it a perfect tool for removing excess solder and debris, ensuring the optimal performance of fuel cells.


Overall, the small blower WS7040-12-X200 is a fully functional and powerful tool that is very suitable for various applications. Whether you are working in the field of fuel cells or any other field that requires efficient airflow and pressure, this mini blower is sure to accomplish the task. Why wait? Get your mini hair dryer now and experience its powerful features and versatility firsthand!





FAQ



Q: May I use this blower for Medical device?

A: Yes, this is one blower of our company which can be used on Cpap and ventilator.



Q: What is the maxmum air pressure?

A: As it shown in the drawing, the maxmum air pressure is 6 Kpa.



Q:Are you a trading company or a manufacturer?

A: We are a manufacturer.



Q:When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry.lf you are urgent to get the price, please send the messageon trade management or call us directly.



Q:Can you make a motor with custom specifications?

A: Yes, actually that is what we do most of the time.
