92mm 12.5Kpa Medical Air Blower With CE/REACH/ETL Certification
  • 92mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification
  • 92mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification
  • 92mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification
  • 92mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification
  • 92mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification
  • 92mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification

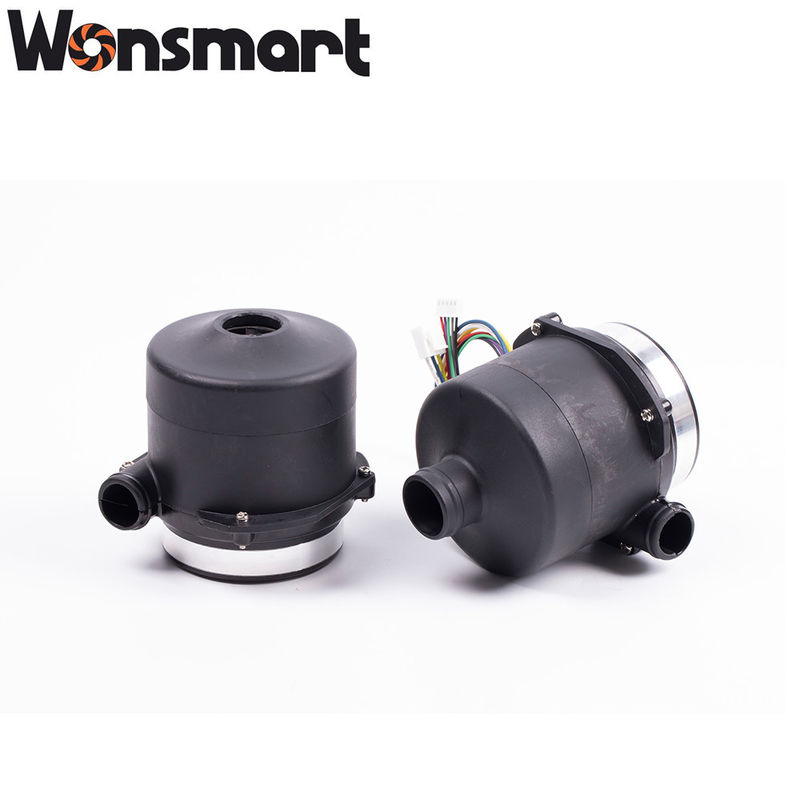

92mm 12.5Kpa Medical Air Blower With CE/REACH/ETL Certification

Place of Origin zhejiang.china
Brand Name Wonsmart
Certification ISO9001,ETL,REACH,ROHS,CE
Model Number WS9290-24-220-X300
Product Details
Brand:
Wonsmart
Part No:
WS9290-24-220-X300
Voltage:
24VDC
Air Pressure:
12.5Kpa
Product Weight:
490g
Air Flow:
47m3/h
Speed Level:
22,5000rpm-28,500rpm
Current:
5.2A-7.8A
Power:
124.8W-187.2W
Noise Level:
66[dBA]-83[dBA]
Motor Pole Pairs:
2
Motor Type:
Three Phase Brushless
Highlight:

12.5Kpa Medical Air Blower

,

ETL Medical Air Blower

,

REACH medical ventilator blower

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
discuss personally
Packaging Details
27*16*12cm
Delivery Time
5-7 work day
Payment Terms
T/T
Supply Ability
100set/month
Product Description

92mm 12.5Kpa air pressure medical blower with CE/REACH/ETL certification



3 inch 12.5Kpa 24V 48V high pressure dc brushless mini electric exhaust centrifugal turbo warm air blower fan IP54 small size for industrial packing machine Suitable for air cushion machine/fuel cell/medical equipment and inflatables.



92mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification 092mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification 1



Product parameters



Brand Wonsmart
Blower type Centrifugal fan
Bearing NMB ball bearing
Applicable Industries Manufacturing Plant
Electric Current Type DC
Mounting Ceiling Fan
Place of Origin Zhejiang, China
Warranty 1 Year
After-sales Service Provided Online support
Controller external
Weight 490g
Speed@hall sensor frequency 1Hz=30r/min
Size 92mm*90mm
Life time(MTTF) >10,000hours (under 25 degree C)





Drawing:

92mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification 2



Blower Performance:



WS9290-24-220-X200 blower can reach maximum 47m3/h airflow at 0 kpa pressure and maximum 12.5kpa static pressure.It has maximum output air power when this blower run at 7kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 7kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:

92mm 12.5Kpa  Medical Air Blower With CE/REACH/ETL Certification 3



DC brushless blower advantage:



(1)WS9290-24-220-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000hours at 20degree C environmental temperature.

(2)This blower needs no maintence;

(3)This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.

(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.





Applications:



This blower can be widely used onto air pollution detector,air bed,air cushion machine and ventilators.





How to use the blower correctly:

This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower life time longer.
